Dimensions and Capacities of Portable Spill Bunds
Fleximake manufactures a wide range of standard collapsible and portable spill containment bunds for various applications. The wall height of our standard portable bunds are 300mm. Details of our standard heavy duty collapsible bunds are listed in the table below. Our flexible spill bindings are a perfect cost effective alternative to rigid bunded pallets and spill containment pallets.
| Model No||Length X Width ||Capacity(Litres)||Application examples|
|FMSB1313_ _ _ _||1.3m x 1.3m ||507 L||To store 1 IBC or 1 Pallet|
|FMSB1613_ _ _ _||1.6m x 1.3m ||624 L|
|FMSB1616_ _ _ _||1.6m x 1.6m ||768 L|
|FMSB2613_ _ _ _||2.6m x 1.3m ||1014 L||To store 2 IBCs or 2 Pallets|
|FMSB2020_ _ _ _||2.0m x 2.0m ||1200 L|
|FMSB2626_ _ _ _||2.6m x 2.6m ||2028 L||To store 4 IBCs or 4 Pallets|
|FMSB2816_ _ _ _||2.8m x 1.6m ||1344 L|
|FMSB2828_ _ _ _||2.8m x 2.8m ||2352 L|
|FMSB3232_ _ _ _||3.2m x 3.2m ||3072 L|
|FMSB5224 _ _ _||5.2m x 2.4m ||3744 L||To store 8 IBCs or 8 Pallets|
|FMSB6030 _ _ _ _||6.0 x 3.0m ||5400 L||To park a car|
|FMSB8040 _ _ _ _||8.0m x 4.0m ||9600 L||To store ISO tank or 20 foot container|
|FMSB10036 _ _ _ _||10.0m x 3.6m ||10800 L|
|FMSB15040 _ _ _ _||15.0m x 4.0m ||18000 L||To store 40 foot container|
|FMSB15060 _ _ _ _||15.0m x 6.0m ||27000 L|
|FMSB18030 _ _ _ _||18.0m x 3.0m ||16200 L||To park a truck|
Note: _ _ _ _of the model number in the above table represent the code for the fabric material. These codes are shown in the table in “Fabric Material Choices for Spill Bunds” tab that details the fabric material selection. Example: Material code for RPVC 900gsm is P09N. Therefore, the model number for 3.2m x 3.2m spill bund made out of RPVC 900gsm is FMSB3232P09N.
Custom Made Solutions
Fleximake can provide you a tailor made solution to perfectly fit your secondary spill containment application. We can manufacture collapsible bunds to fit any shape and size you require. In addition we can provide a solution with the following options. Foam walls instead of collapsible wall (also known as spill mats) Inflatable walls instead of collapsible walls Drain fittings Eyelets or tie points for securing Sacrificial Ground sheet or anti abrasion mat Bund internal floor protectors Carry bags for portable bunds Higher walls, example:- 500mm high walls
We can also provide you with flexible liquid storage solutions consisting of robust liquid containment bags, bladders or Onion tanks for primary containment and collapsible spill bunding for secondary containment. These bunded tank solutions are ideal for not only storage and handling of flammable and combustible liquids such as fuels and oils, but also other dangerous goods such as hazardous chemicals. Fleximake flexible bladders can also be used for temporary storage of contaminated bund water. We also manufacture high quality spill mats and flexible spill barrier bunds. These will complement spill kits by minimizing the use of absorbent mats and will help you effectively control unwanted oil spills. Fleximake pallet covers can help you cover stored hazardous materials and keep them secured from accidental contact.
We can manufacture very large temporary bund wall systems and spill containment bund liners and for your application. Please contact us with your requirements.
Fabric Material Choices for Portable Spill Bunds
Fabric Material Choices for Portable Spill Bunds
We manufacture our collapsible spill bunding from strong, durable, heavy duty materials suitable for harsh environments in commercial, mining and industrial applications. We have spill bunds manufactured from a range of different materials that are best suited to your application.
The selection of fabric materials that are used for manufacturing our spill containment bunds are listed in the table below. We select the most economical material suitable for your needs considering liquid characteristics. Please download the datasheets for properties and fluid resistance guidelines of our industrial fabric materials.
If applicable fluid does not list in the above fluid resistance guideline datasheets or if the data is not clear to you, please contact us in order to select a suitable material for your application.
Why Choose Fleximake Portable Spill Bunds
Robust and durable
Fleximake Portable spill bunds are designed and manufactured to be robust and durable. We apply UV resistance fabric materials for all our spill containment solutions to minimise the UV degradation.

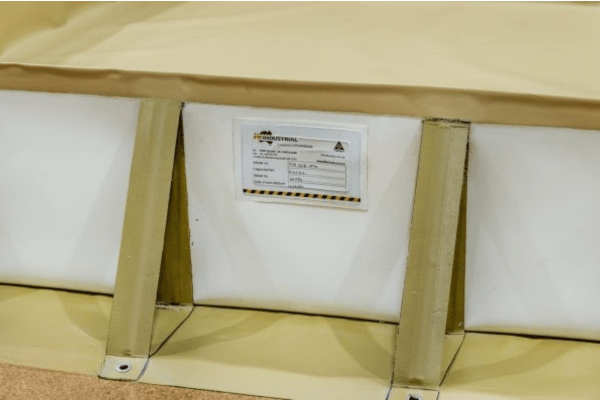

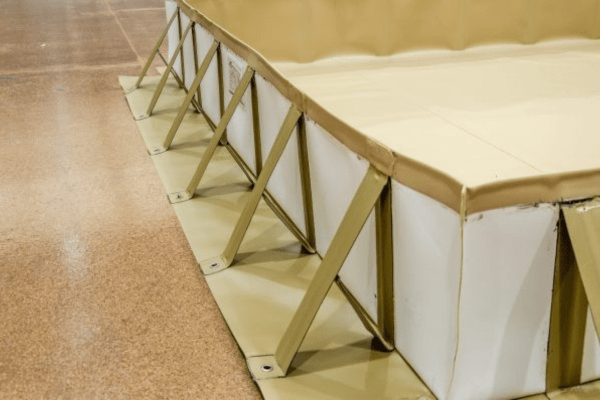

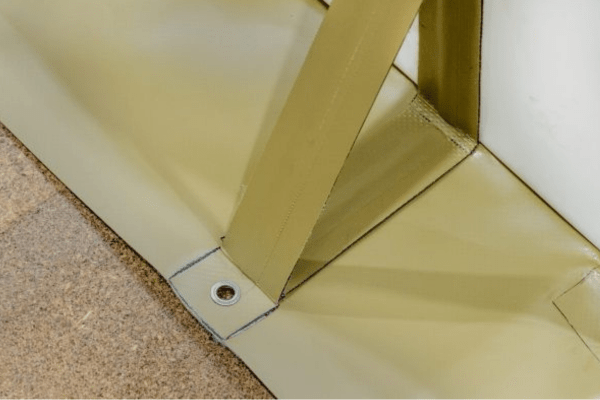

Walls are reinforced with heavy duty fiberglass rods that allow the bunds to be sturdy once erected. All the seams of Fleximake spill bunds are fusion welded using cutting edge plastic welding machines for guaranteed 100% sealing and for strength. If required we can include eyelets for pegging down on to soft grounds.
The fabric material used for our bunds are heavy duty, abrasion and puncture resistant, high in tensile strength therefore suitable for deployment on rough surfaces. Fleximake can provide an optional protective ground sheet if the surface contains sharper objects.
Ease of use

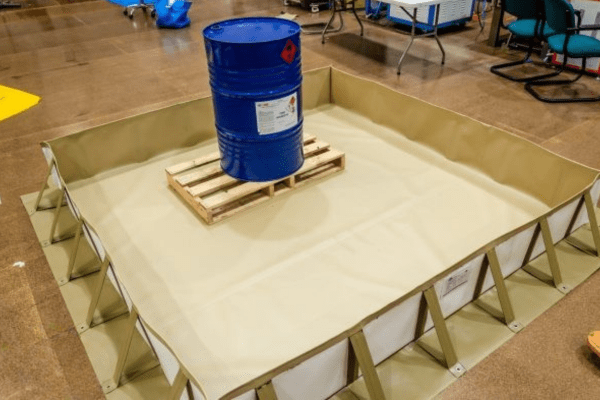

Fleximake portable emergency spill bunds are designed and manufactured to allow you to deploy the bund rapidly. They come in one piece with no loose parts and no joining or assembly is required, you just need to unfold and erect the sides of the bund. This makes it ideal for emergency containment jobs.

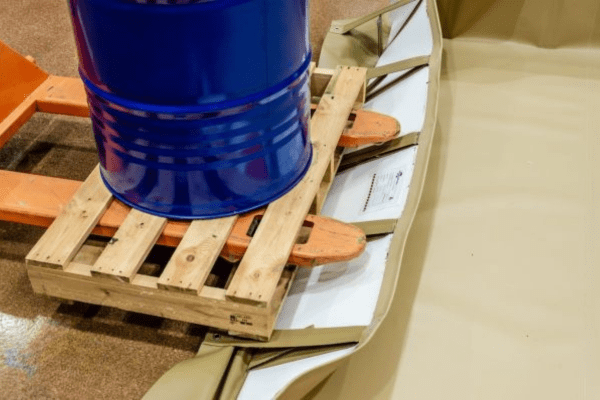

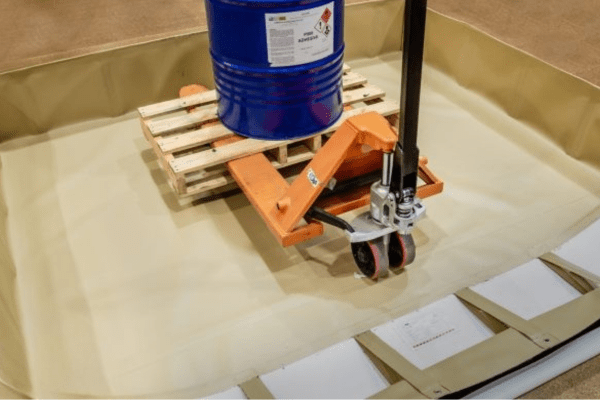

Collapsible side walls and tough fabric materials mean that you can drive your vehicle or machinery into the bund easily. Fleximake spill bunds can be easily cleaned after use. They are foldable, light weight therefore, can be transported and stored conveniently.
Fleximake service and after sales support
Our manufacturing facility is located in Melbourne Australia, operating for over 10 years. We are committed to provide repair service and after sales support to all our customers. We can repair your existing portable spill containment bunds to help you save money even if they are from other manufacturers’. Please contact us with the details.
What we need from you to provide you an obligation free quotation Required capacity and/or dimensions of the spill bund Application and type of liquid
